± (1 m + 0.1 % x length) for reflective incidents1 ± (3 m + 0.1 % x length) for non-reflective incidents2ġm after the bulkhead connector when the bulkhead reflectance is 3 m after an incident when the incident reflectance is 10 m after the bulkhead connector or any prior incident when the bulkhead reflectance is <-35 dB and the reflectance of any prior incident is <-35 dB. Operating relative humidity (without condensation)ĩ5% (10✬ to 35✬) 75% (35✬ to 40✬) uncontrolled 11 dBĭistance accuracy (0 m to 1500 m or 0 ft to 4921 ft) Rugged construction vibration and drop tested to 1 meter.Long battery life, 1,500 tests (typical) from 2 AA alkaline batteries.Optional LC, ST and FT interchangeable adapters are available.Backlighted display turns off automatically Change the Index of Refraction (IOR) to improve fiber length accuracy.Six-second test time-no more blind troubleshooting that can waste hours Connect your fiber and press the Test button. Detects live optical signals before it begins testing.Find potential sources of high bit error rates caused by reflectance from dirty or poor connections.
Locate severe bends, high-loss splices, breaks and dirty connectors in multimode fiber.Measure up to 4,921 feet (1,500 metres) of fiber in seconds You will minimise your downtime, receive faster trouble resolution and have total access to all support resources. Looks for a signal every 3 seconds after the first detection. Gold Support allows you to make the most of your purchase while ensuring a higher return on your investment. If no fiber is attached or if the connector is dirty, the troubleshooter displays 0 m or 0 ft.ĭetects optical signals from 600 nm to 1050 nm and shows ACTIVE LINE if a signal is there. 35 dB default threshold (User selectable: -20 dB to -45 dB in 5 dB increments)Ġ.70 dB default threshold (user-configurable from 0.5 dB to 6.1 dB in 0.2 dB increments) Removable/cleanable SC adapter, UPC polish ± (1 m + 0.1 % x length) for reflective incidents 1 ± (3 m + 0.1 % x length) for non-reflective incidents 2 OTDR (The optical time domain reflectometer): The reflector in the optic. Specifications Operating temperature with the battery Fiber QuickMap MM Fiber Range and Fault Locator Visual Fault Locator (VFL): It is a fiber optic light pen that detects whether the cable is broken or broken with the visible light it provides in 2M (IEC 60825-1:2007.
FLUKE NETWORKS FIBER QUICKMAP PATCH

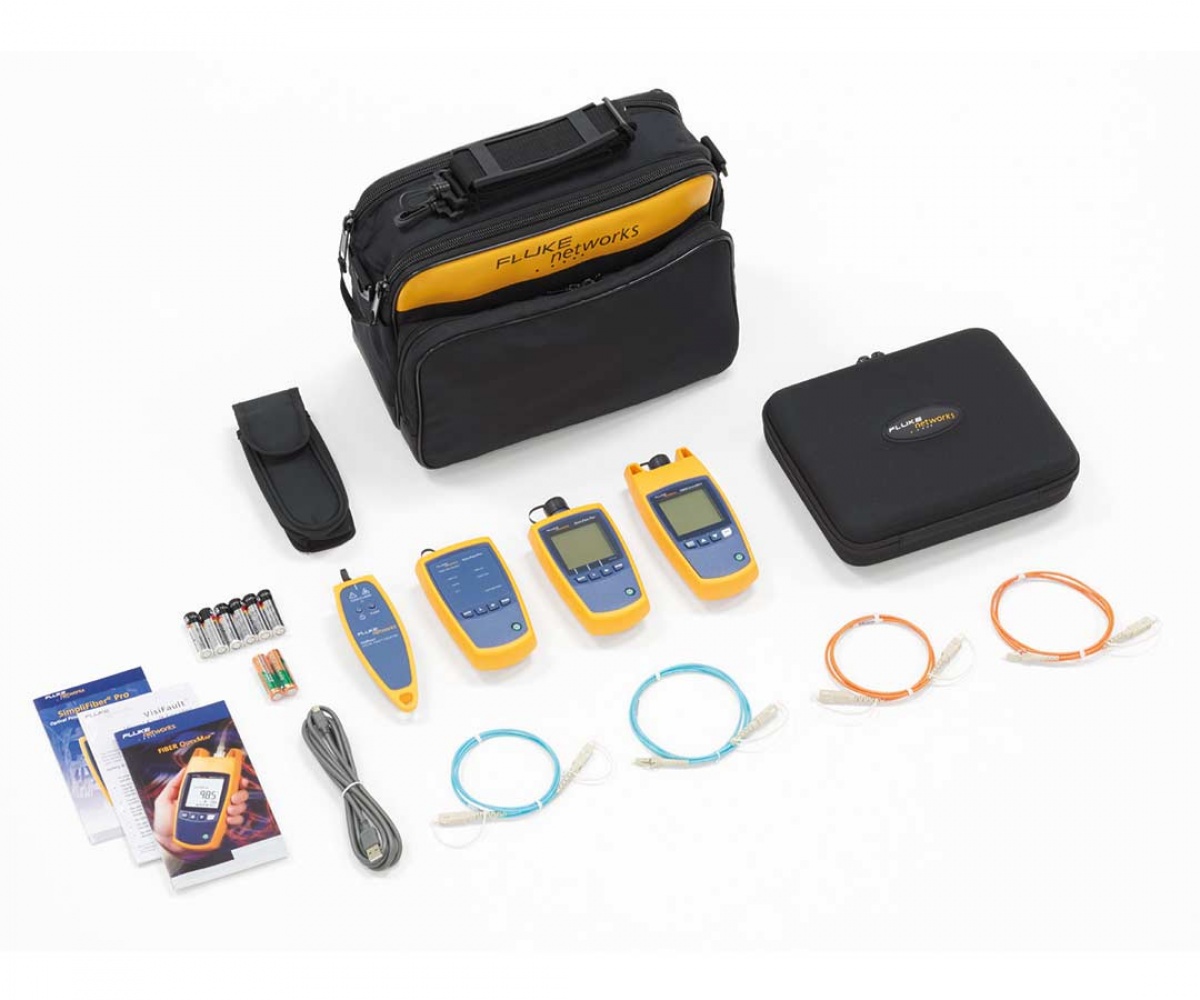

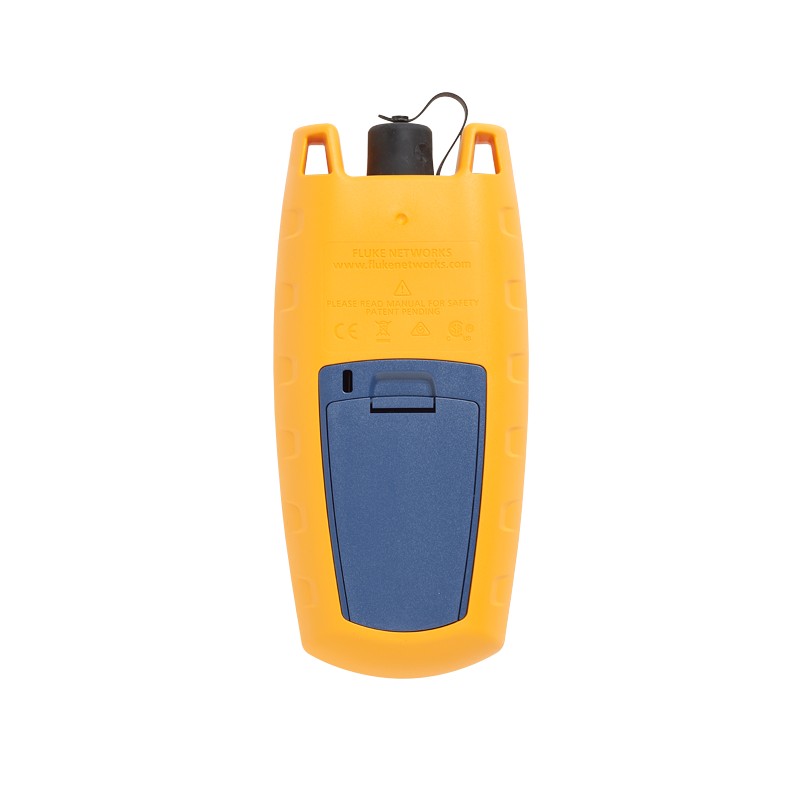

VFLs work well for exposed lengths of fiber near a patch panel by illuminating bad connections and. Cable network testers: Description: Fluke Networks Fiber QuickMap Kit - Network tester kit: Manufacturer: Fluke: MSRP: UNSPSC: 43222643: Main Specifications Dimensions & Weight / Depth: 3.8 cm: Dimensions & Weight / Height: 17.5 cm: Dimensions & Weight / Weight: 350 g: Dimensions & Weight / Width: 7. These models have the simplicity of a VFL, and provide distance and power information on high losses, breaks, and the end of the fiber and also identify live fiber. Locate the Most Common Causes of Multimode Fibre Failure The Fluke Networks Fiber Optic QuickMap fills the gap between a VFL and an OTDR.Obtain Critical Visibility into the Multimode Channel.Perfect for fibre cable troubleshooting.Rugged construction vibration and drop tested to 1 meter Fluke Networks’ Fiber QuickMap is an enterprise multimode fiber troubleshooter that quickly and efficiently locates connections and breaks in multimode fiber.See Key information on a large display loss in db and distance in meters or feet.Locate high loss incidents or breaks-find the most common causes of fibre failure.
FLUKE NETWORKS FIBER QUICKMAP FREE
Connect your fibre and press the Test button. LIMITED WARRANTY AND LIMITATION OF LIABILITY Fluke Networks mainframe products will be free from defects in material and workmanship for one year from.
